GRAVITEC VENTILATORS R

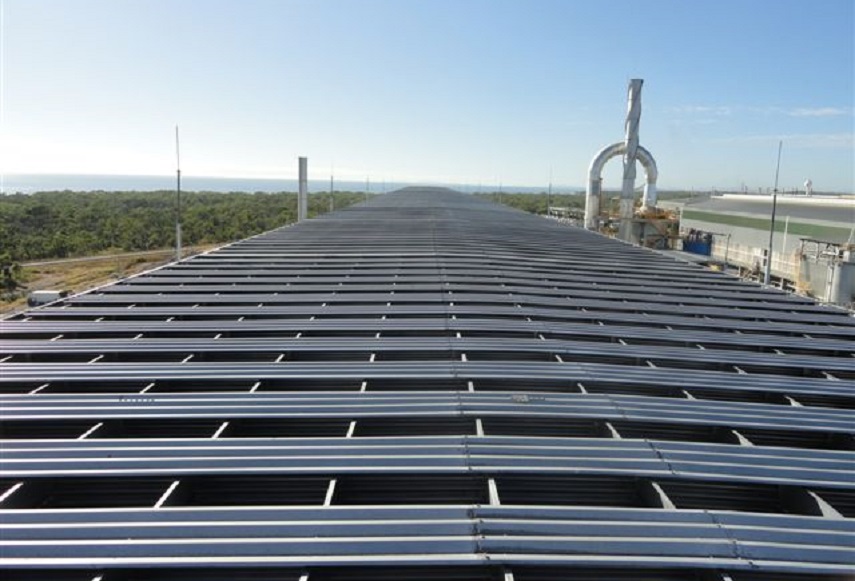

R-Vent is our low profile ventilator placed in continuous runs. Designed to withstand heavy weather, allow the industry's best heat exhaust in a low profile design while still being lightweight. our most competitively priced LPV units.
Designed for
- Maximum Exhaust Air Flow (Air-Therm Inc.)
- Lightness (Air-Therm Inc.)
- Low Silhouette (Air-Therm Inc.)
The ventilators do not allow rain or snow infiltration under normal operating conditions and positive presure.

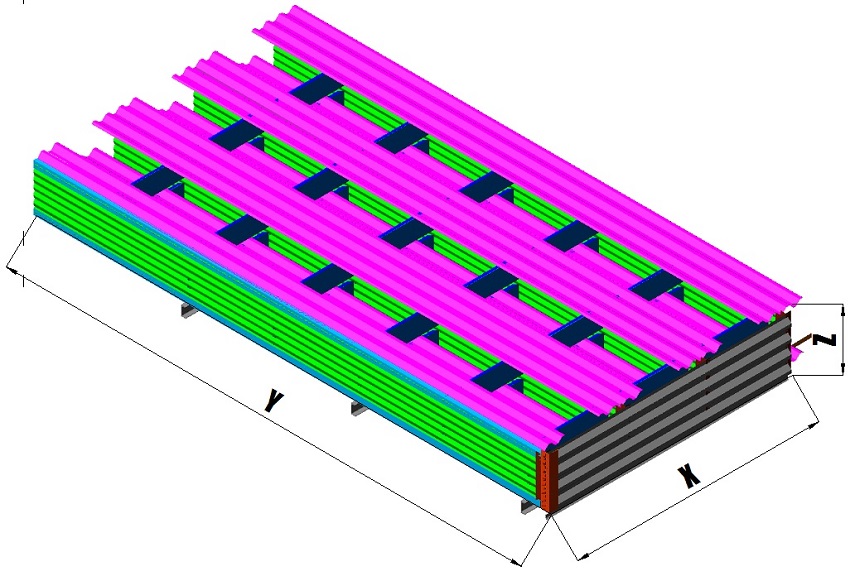

Dimensions
| Dimensions | X [mm] | X [inch] | Y [mm] | Y [inch] | Z [mm] | Z [inch] |
|---|---|---|---|---|---|---|
| R 3.6 | x 800 | x 31 1/2 | 3600 | 142 | 508 | 20 |
| R 5.5 | x 800 | x 31 1/2 | 5500 | 217 | 508 | 20 |
| R 8.0 | x 800 | x 31 1/2 | 8000 | 315 | 508 | 20 |
| R 11 | x 800 | x 31 1/2 | 11000 | 433 | 508 | 20 |
| R 15 | x 800 | x 31 1/2 | 15000 | 590 | 508 | 20 |
IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.
Specifications
PRODUCT INFO
SHEETING
APPLICATIONS
Gravitec Ventilators Sizing Tool
This tool is intended for plant operators or mechanical enineers.
Vents Sizing Tool
