GRAVITEC VENTILATORS LTX
LTX-Vent is our low profile ventilator placed in continuous runs. The design has been supplied by Air-Therm on comercial buildings and where constructability may be an issue, larger beam span is desire due to project cost constraints and optimal heat release does not require the LTX-Vent design.
Designed for
- Maximum Exhaust Air Flow (Air-Therm Inc.)
- Lightness (Air-Therm Inc.)
- Low Silhouette (Air-Therm Inc.)
- Adjustable Air Flow (Option) (Air-Therm Inc.)
The ventilators do not allow rain or snow infiltration under normal operating conditions and positive presure.

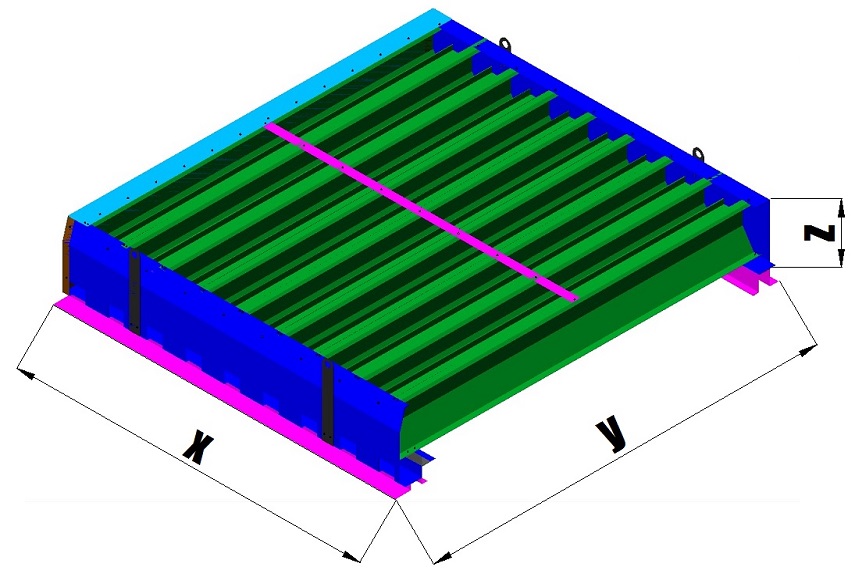

Dimensions
| Dimensions | X [mm] | X [inch] | Y [mm] | Y [inch] | Z [mm] | Z [inch] |
|---|---|---|---|---|---|---|
| L3.6 | x 350 | x 13 3/4 | 3600 | 142 | 508 | 20 |
| L5.5 | x 350 | x 13 3/4 | 5500 | 217 | 508 | 20 |
| L8.0 | x 350 | x 13 3/4 | 8000 | 315 | 508 | 20 |
| L11 | x 350 | x 13 3/4 | 11000 | 433 | 508 | 20 |
| L15 | x 350 | x 13 3/4 | 15000 | 590 | 508 | 20 |
IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.
Specifications
PRODUCT INFO
SHEETING
APPLICATIONS
Gravitec Ventilators Sizing Tool
This tool is intended for plant operators or mechanical enineers.
Vents Sizing Tool
