ALUMINIUM WALL LOUVERS

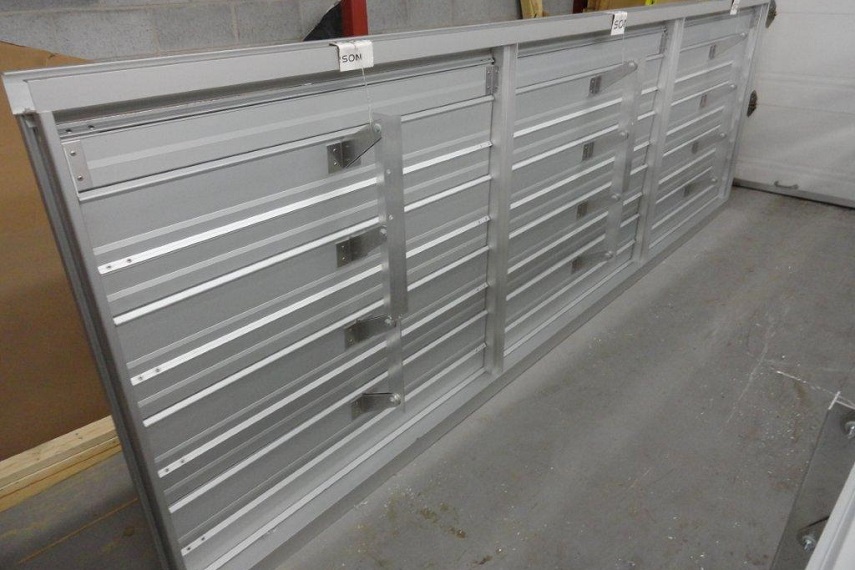

Air-Therm engineers and fabricated adjustable (motorized and manual) and fixed inlet wall louvers in extruded aluminium construction. What they all have in common is that they will be supplied fully assembled, be the industry's best quality louvers and be designed for the specification intended. As always competitively priced.

Designed for

  • Maximum Exhaust Air Flow (Air-Therm Inc.)
  • Lightness (Air-Therm Inc.)
  • Adjustable Air Flow (Option) (Air-Therm Inc.)

Dimensions

Louver Type Heigh [mm] Heigh [inch] Width [mm] Width [inch] Depth [mm] Depth [inch]
AWL 24 610 24 610 24 152 6
AWL 36 914 36 914 36 152 6
AWL 48 1219 48 1219 48 152 6
AWL 60 1524 60 1524 60 152 6
AWL 72 1829 72 1702 67 152 6
AWL 84 2134 84 2350 92 152 6
AWL 96 2438 96 2350 92 152 6
AWL 120 3048 120 2350 92 152 6
AWL 135 3424 135 2350 92 152 6

IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.

Specifications

PRODUCT INFO

  • Easy to assembly.
  • Easy to install.
  • Proven industrial applications.
  • Competitive pricing.
  • On schedule conformity.
  • CONSTRUCTION

  • Frame 6" deeo chanel, 0.125" thickness, 6063-T5 extruded aluminium alloy
  • Blades 0.125" thickness, 6063-T5 extruded aluminium alloy
  • Available fixed or adjustable
  • Finish: Mill
  • Optional Bird-Screen locaed on exterior
  • Axles: 1/2" diameter aluminium
  • Bearings: Delrin bushing
  • Linkage: Galvanized steel high bracket & aluminium linkage tie-bar
  • Driving: Actuator (mechanical) or Manual Locking device
  • Percent Free Area: 90%
  • APPLICATIONS

  • Comercial
  • Industrial
  • Maintenance Area
  • Large Area
  • Download PDF Datasheet

    Specifications for Aluminium Wall Louvers.
