AXELAIR INTAKE PANEL

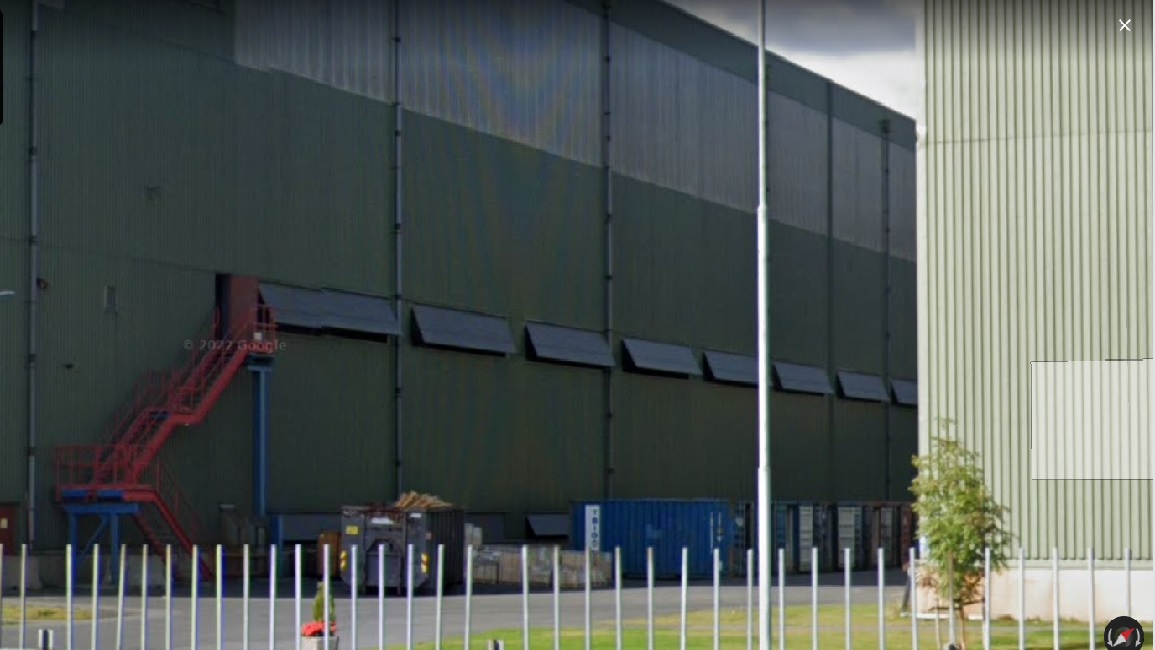

Axelair Intake Panel is our adjustable wall panel. Designed with a potential 100% free air opening, our panel are supplied with an integrated frame section and rugged gang operation for manual or optionally motorized opening and adjustment.
Designed for
- Maximum Exhaust Air Flow (Air-Therm Inc.)
- Lightness (Air-Therm Inc.)
- Adjustable Air Flow (Air-Therm Inc.)
Dimensions
| Description | Heigh [mm] | Heigh [inch] | Width [mm] | Width [inch] |
|---|---|---|---|---|
| AXELAIR 2000 | 2000 | 78 3/4 | 1000 | 39 1/2 |
| AXELAIR 3000 | 3000 | 118 1/8 | 1500 | 59 |
| AXELAIR 4000 | 4000 | 157 1/2 | 2000 | 78 3/4 |
| AXELAIR 5000 | 5000 | 216 1/2 | ||
| AXELAIR 5500 | 5500 | 216 1/2 | ||
| AXELAIR 6000 | 6000 | 236 1/4 | ||
| AXELAIR 7000 | 7000 | 275 1/2 | ||
| AXELAIR 8000 | 8000 | 315 |
IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.
Specifications
PRODUCT INFO
CONSTRUCTION
APPLICATIONS
Please consult the factory for a specification on this product.
