GRAVITEC VENTILATORS VG

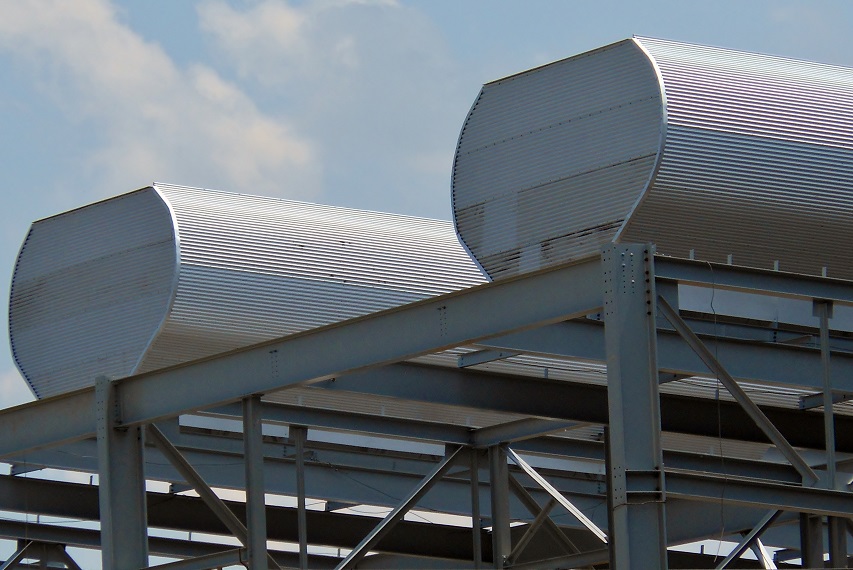

Air-Therm's state of the art tulip shaped gravity ventilator. With best in industry quality, 100s of field applications, 60 years of physical modeling and numerous runs of CFD testing. This is the model when performance counts. Competitively priced with 1200 mm to 4800 mm sizing. can be supplied many special options.

Designed for

  • Maximum Exhaust Air Flow (Air-Therm Inc.)
  • Aerodynamic Shape (Air-Therm Inc.)
  • Maximum Water Run-Off (Air-Therm Inc.)
  • Adjustable Air Flow (Option) (Air-Therm Inc.)

The ventilators do not allow rain or snow infiltration under normal operating conditions and positive pressure.

The ventilators are capable of self-cleaning action by the elements, with provisions for carrying water and normal wind-transported soil materials outside the ventilators.

Dimensions

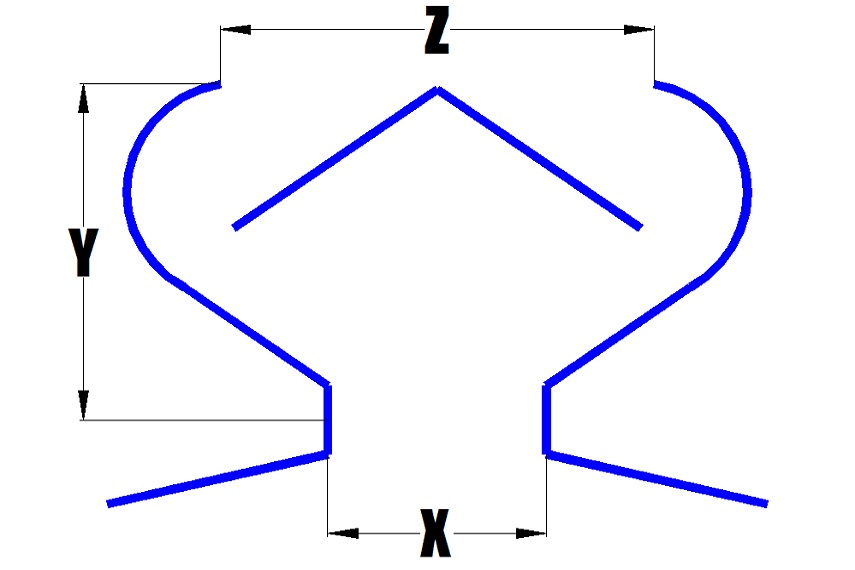

Dimensions X [mm] X [inch] Y [mm] Y [inch] Z [mm] Z [inch]
1200 1200 48 1660 65 2900 120
1500 1500 60 2040 80 3600 145
1800 1800 72 2420 100 4320 170
2100 2100 84 2800 115 5030 200
2400 2400 96 3170 130 5740 230
2700 2700 108 3550 145 6450 260
3000 3000 120 3930 160 7160 290
3600 3600 144 4690 190 8580 345
4500 4500 180 5820 235 10720 430

IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.

Specifications

FRAMES

  • Steel Angles 3 mm thickness.
  • Prime Coat.
  • Hot Dip Galvanized.
  • Special Epoxy.
  • CLADDING

  • Galvanized Steel
  • Prepaint Steel
  • Aluminium
  • Prepaint Aluminium

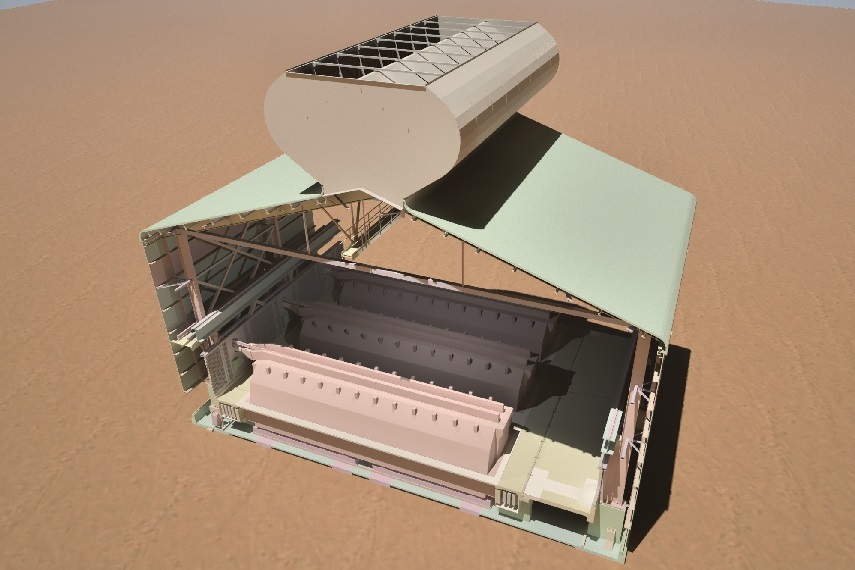

  • APPLICATIONS

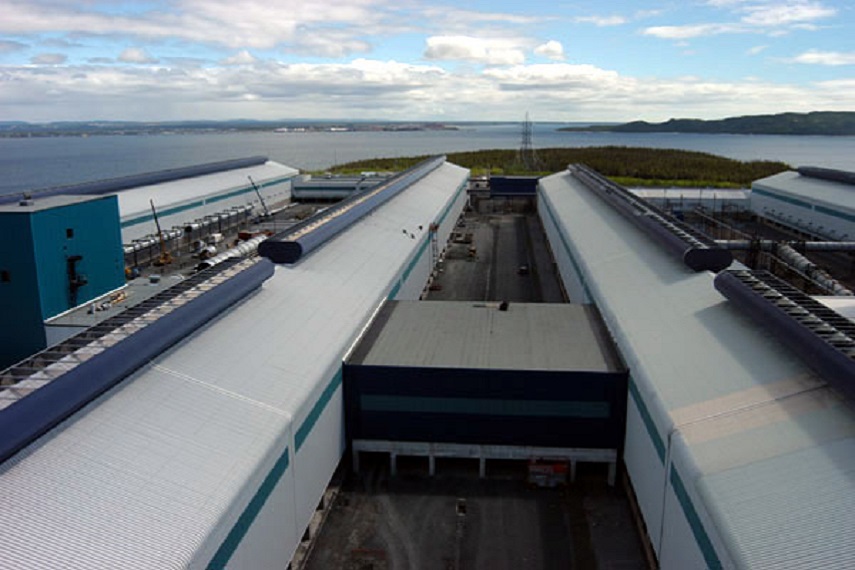

  • Aluminium Smelters
  • Steel Mills
  • Chemical Plants
  • Heavy Industries
  • Video Presentation

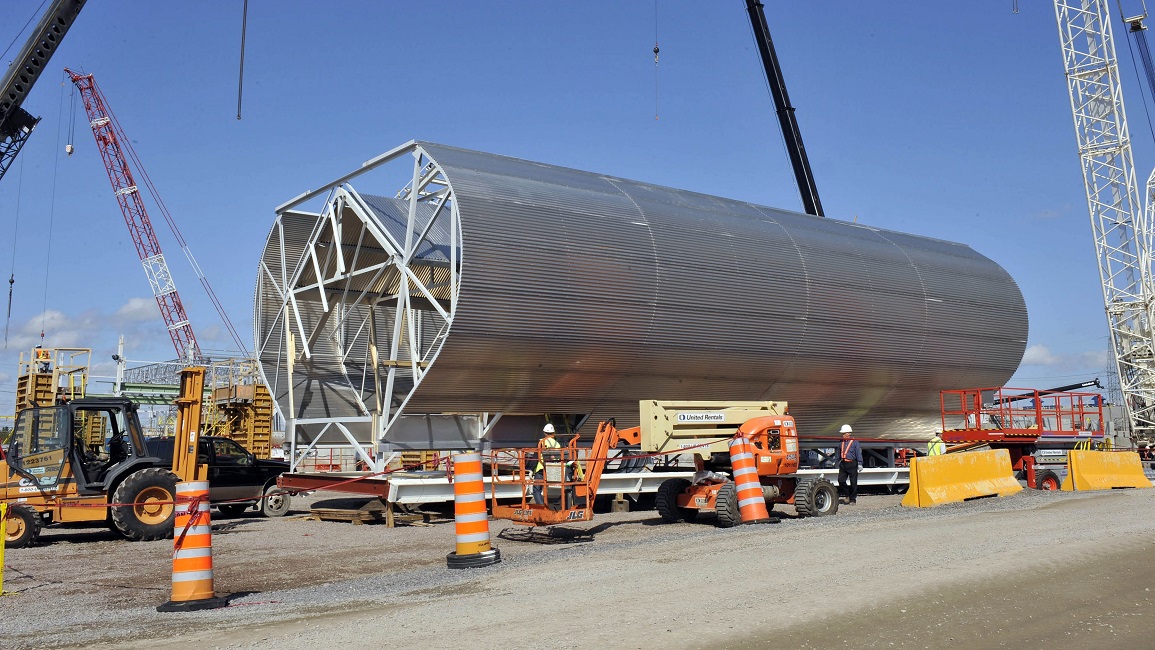

    VG-4550, AP-60 Project

    See VIDEO- VG

    Download PDF Datasheet

    Specifications for Gravitec Ventilators VG.
