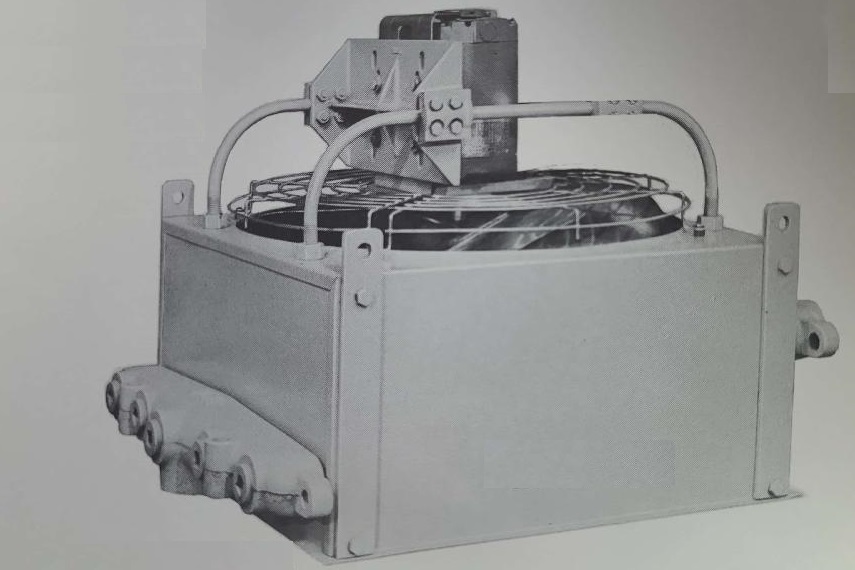

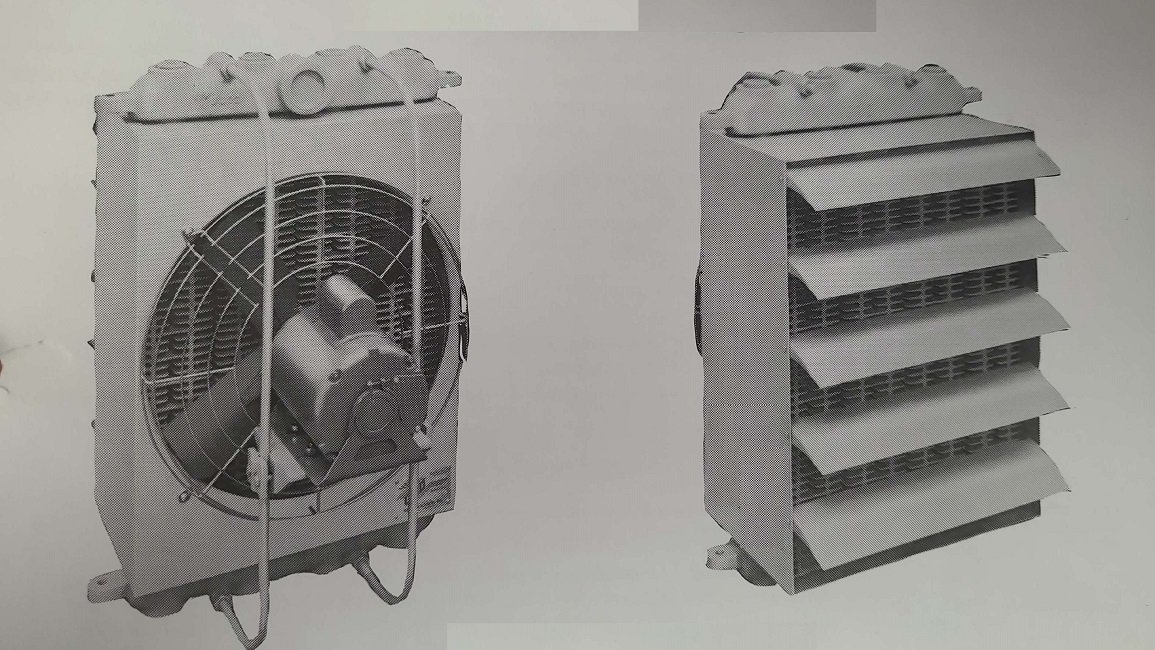

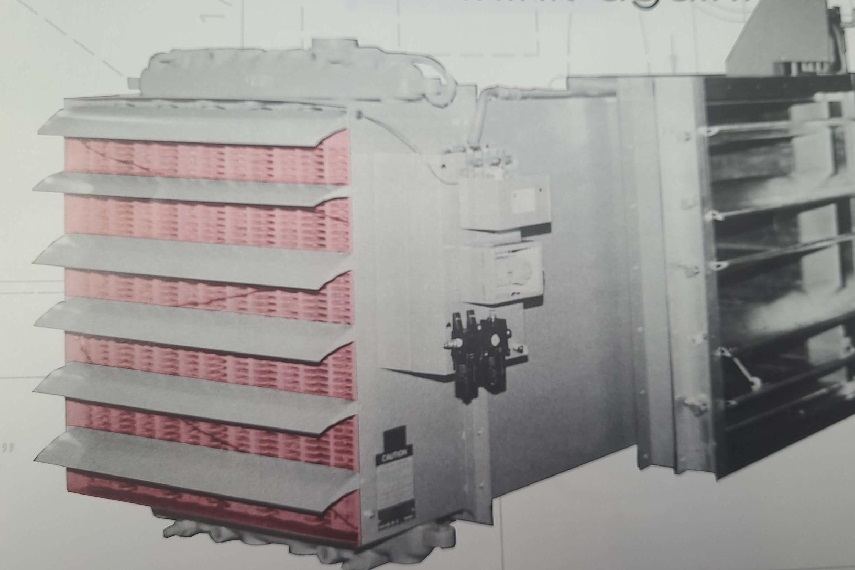

CAST-IRON UNIT HEATER
Air-Therm supplies the industry's most rugged cast iron steam units. these units can handle highly corrosive atmospheres, higher steam pressures and are designed for high pressurecleaning. If your plant is replacing it's unit heaters every 2 or 3 winters, then it is time to step up to contact Air-Therm Inc.
Designed for
- Resist External & Internal Corrosion (Air-Therm Inc.)
- Constructed to Withstand High Steam Pressure (Air-Therm Inc.)
- Assure Maximum Heating Efficiency at Minimum Heating Cost (Air-Therm Inc.)
- Minimum Maintenance Expense in Years of Operation (Air-Therm Inc.)

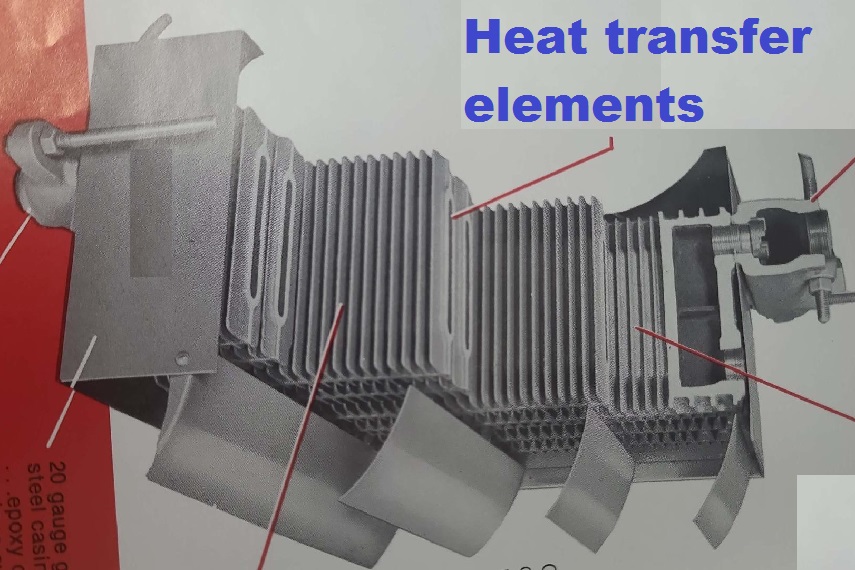

Cast-iron fin sections and headers are extremely corrosion resistant.
Years of minimum maintenance service can offset many times over the lower initial cost of thin wall copper, aluminium or steel tube type heaters.

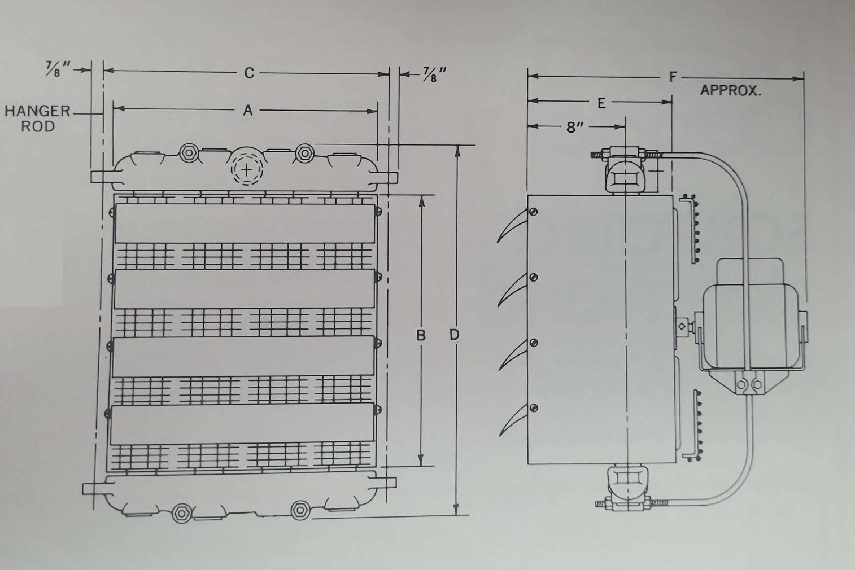

Dimensions
| Model | Air Flow [L/sec] | Air Flow CFM] | Heat [kW] | Heat [MBH] | Weight [Kg] | Weight [Lbs] |
|---|---|---|---|---|---|---|
| AT-H-315-04 | 750 |
1550 |
30 |
53.8 |
140 |
310 |
| AT-H-420-02 | 1200 |
2600 |
46 |
145 |
222 |
490 |
| AT-H-630-20 | 3800 |
8100 |
146 |
280 |
485 |
1075 |
IMPORTANT NOTE: Sizing for general informations only. Please contact our Engineering Department for details.
